Mishimoto Aluminum Performance Radiator – 1995-1997 Ford 7.3L Powerstroke

Description

Upgrade the cooling system in your 1995–1997 Ford 7.3L Powerstroke with the Mishimoto MMRAD-F2D-95 Aluminum Performance Radiator. Built for durability and improved cooling performance, this radiator features a fully aluminum design with a brazed aluminum core and TIG-welded end tanks to handle demanding driving conditions.

Designed as a direct factory replacement, this radiator bolts directly to the stock fan shroud and mounting locations, making installation quick and straightforward without the need for cutting or modification.

With increased cooling efficiency and improved heat dissipation compared to the factory plastic-tank radiator, the Mishimoto radiator is a great upgrade for daily drivers, tow rigs, off-road trucks, and high-performance builds.

The radiator also includes a magnetic drain plug to help capture metal debris circulating in the cooling system and comes backed by Mishimoto’s limited lifetime warranty for long-term reliability.

Features

• Direct OEM replacement radiator

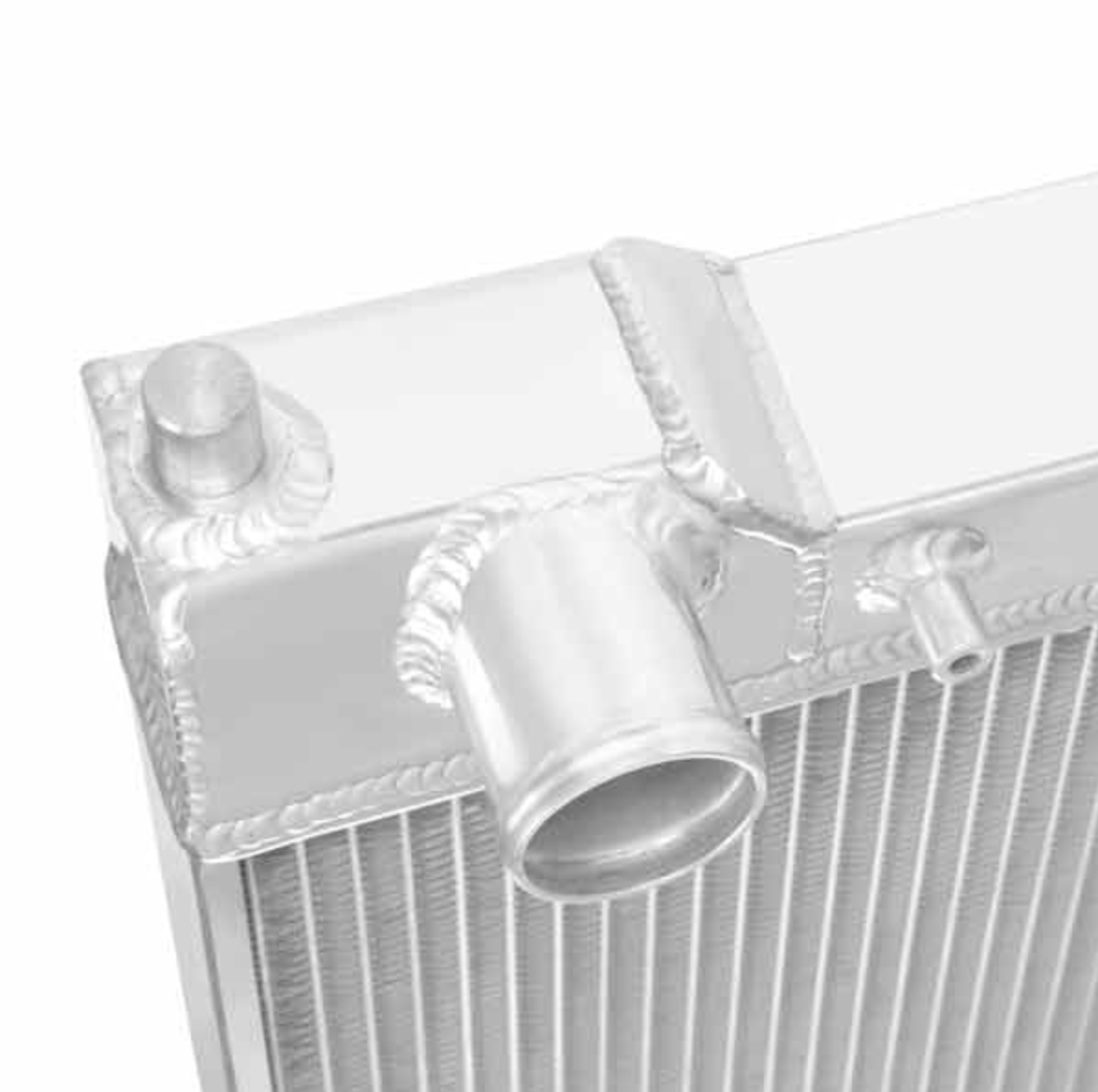

• Full aluminum construction with TIG-welded end tanks

• Two-row brazed aluminum core (2.28" thick)

• Increased coolant capacity and improved heat dissipation

• Magnetic drain plug included

• No cutting or modification required for installation

Specifications

• Overall Size: 29.9" x 29.9" x 4.5"

• Core Size: 29.87" x 23.54"

• Core Thickness: 2.28"

• Inlet: 1.77"

• Outlet: 1.77"

• Rows: 2

• Drain Plug Thread Size: M12 x 1.5

Fitment

• 1995–1997 Ford F-250 7.3L Powerstroke

• 1995–1997 Ford F-350 7.3L Powerstroke

Note

• Early 1995 F-250 trucks built before 1/31/1995 use a different radiator.
