Xtrude Transmission Cooler with Fan - Complete Kit 1/2in Lines
Xtrude Transmission Cooler with Fan - Complete Kit 1/2in Lines
Couldn't load pickup availability
Features
- 22% more cooling over other designs

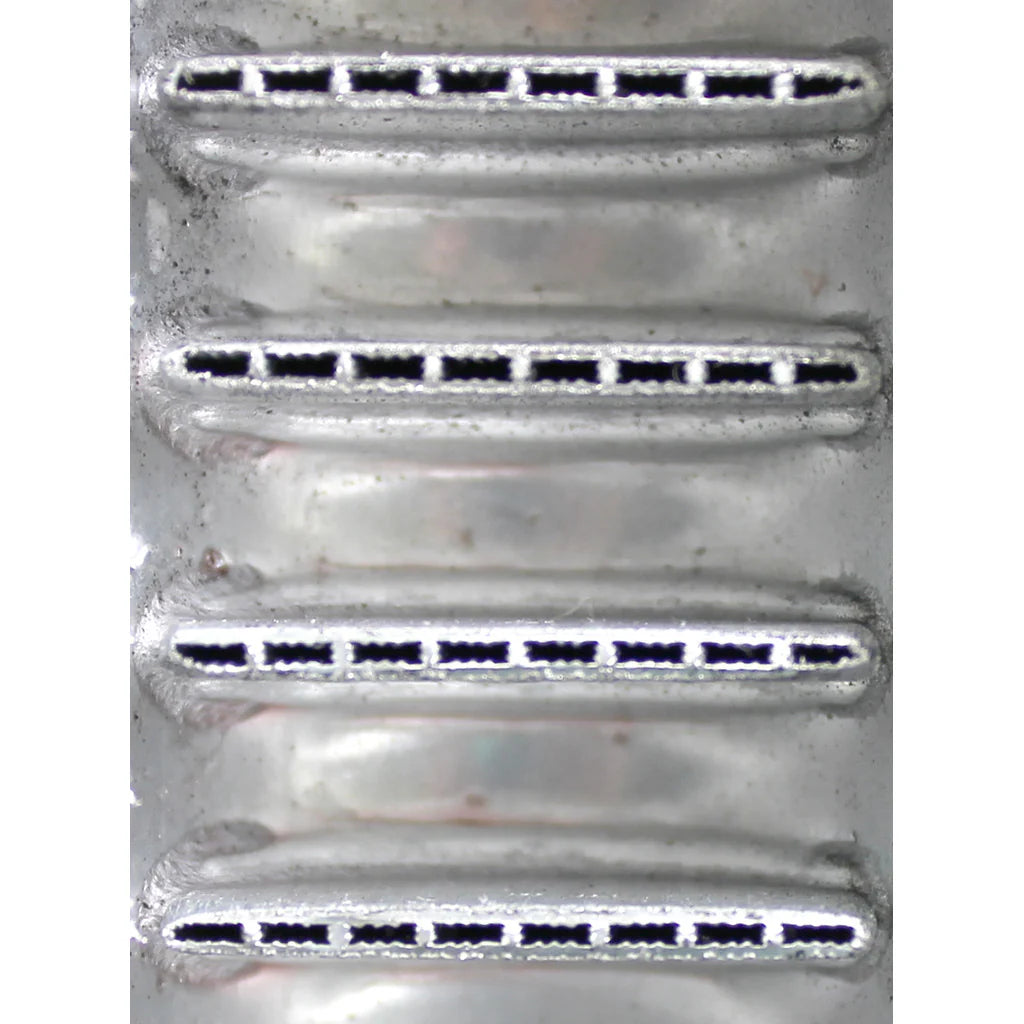

- 200 Micro Extruded passages

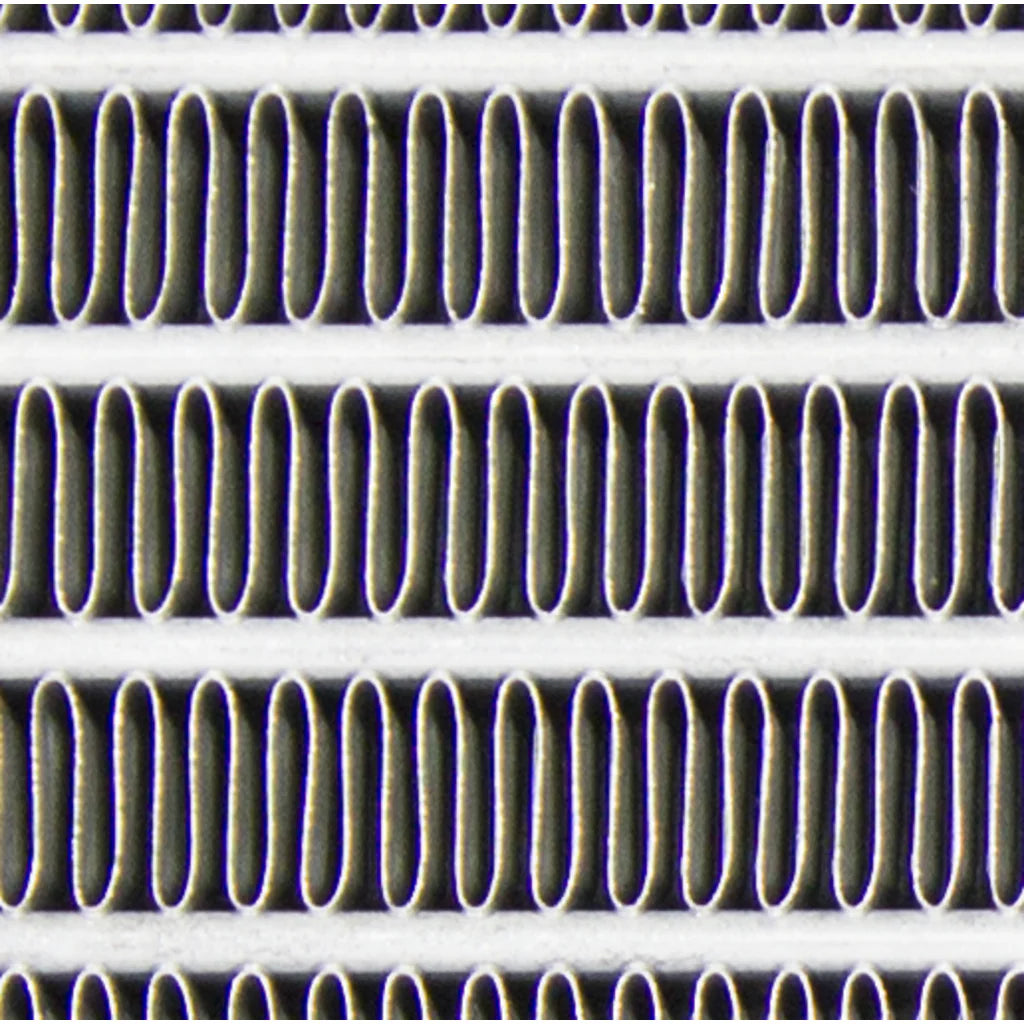

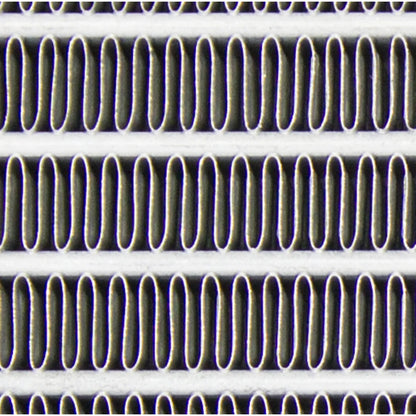

- Large surface area to transfer heat for external air flow cooling
- Turbulent oil flow design promotes a more complete cooling
- Large 5/8-inch ports prevents inlet/outlet restriction
- Furnace brazed rails have been tested to 300psi of pressure
- Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan
- 33,930 BTU/HR and in excess of 30,000 GVW!

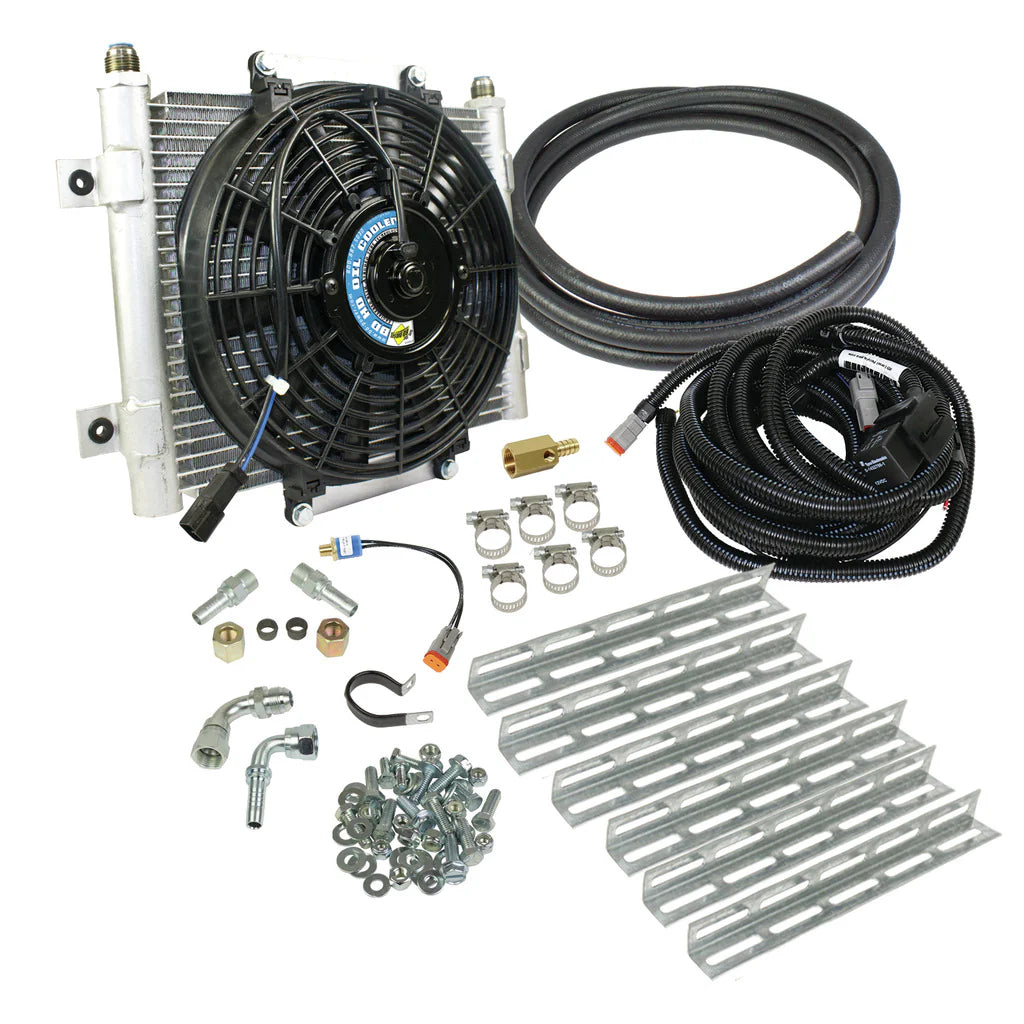

- Kits complete with all fittings, clamps, hoses and hardware

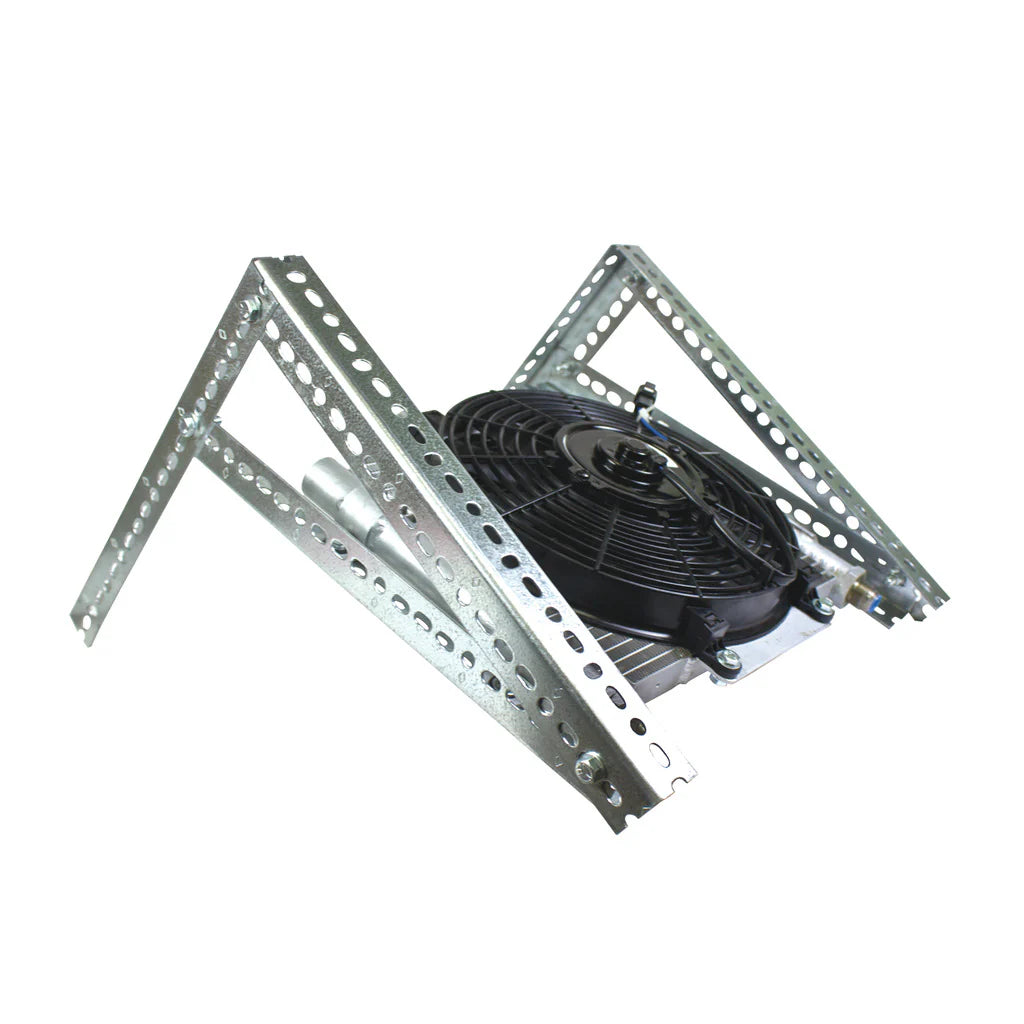

- Build-It-Yourself galvanized bracket kit for quick and easy installation - no wasting time fabricating brackets out of scrap metal
- The pre-wired loomed harness with fuse and relay comes with plug-in connectors
- Dodge 47RH / 47RE / 48RE / 68RFE - 1/2-inch Cooler Lines
- Ford 5R110/6R140 - 1/2-inch Cooler Lines)
ABOUT THIS PRODUCT
Coolers, providing 22% more cooling over other designs. The 200 Micro Extruded passages provide a large surface area to transfer heat for external air flow cooling while turbulent oil flow design promotes a more complete cooling. Large 5/8-inch ports prevents inlet/outlet restriction and furnace brazed rails have been tested to 300psi of pressure. The thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan offers ultimate automatic oil temperature control. This combination gives BD's Xtruded Transmission Oil Cooler a rating of 33,930 BTU/HR and in excess of 30,000 GVW! Xtruded Transmission Oil Cooler packages come complete with all fittings, clamps, hoses, hardware and a Build-It-Yourself galvanized bracket kit for quicker and cleaner installation - no wasting time fabricating brackets out of scrap metal. The pre-wired loomed harness with fuse and relay comes with OEM style sealed connectors to resist elements and give factory-like install look.
INSTALL TIME
- 3 Hours 30 Minutes
WARRANTY
Parts
- 12-Months
- 24,000 Miles
NOTE
- Intended to be used in conjunction with factory transmission coolers and not as stand-alone units
EMISSIONS
- This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
