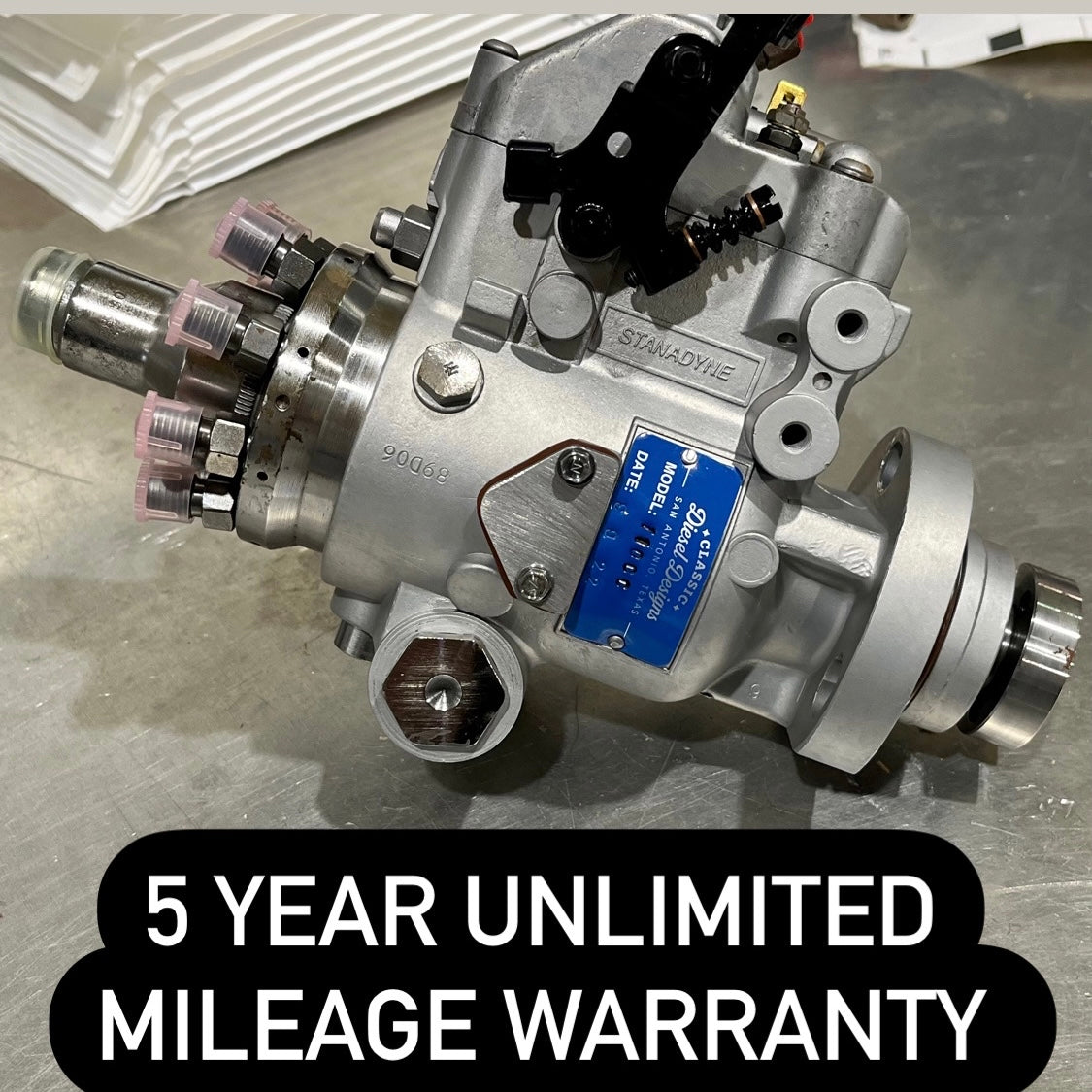

Classic Diesel Designs Stock 6.9/7.3 NA DB2 (60cc/155hp) Injection Pump Rebuild
Classic Diesel Designs Stock 6.9/7.3 NA DB2 (60cc/155hp) Injection Pump Rebuild
Couldn't load pickup availability
Fitment: Stock 6.9/7.3 NA DB2 (60cc/155hp) Injection Pump Rebuild. Match your engine, chassis, transmission and turbo configuration to the details below.
Fulfillment: Supplier-sourced from Classic Diesel Designs. Availability and any manufacturer build time apply; this listing does not indicate stock held at PSC.
Core returns: Core return instructions will be sent upon checkout. Any refundable core amount is the amount specified below; the retail markup is not refundable as a core deposit.
Manufacturer information — Classic Diesel Designs
The stock NA IDI rebuild mirrors the latest factory calibration for the 92-94 non-turbo IDI pumps, with all the reliability upgrades that our street series pumps receive, without the need for a pyro or boost gauge, and an upgrade for all earlier engines with previous iterations of non turbo calibrations.
- Current lead time for this spec CDD injection pump is 3-5 weeks.
All Classic Diesel Designs' DB2 injection pumps are built to and exceed oem specification. All pumps are built with a new advance piston, balanced metering valve to reduce side load and stickage issues, low lubricity spec tool steel blade set and transfer pump liner to reduce wear with modern dry diesel, high torque shutoff solenoid, viton material grade seals, updated delivery valve, delivery valve stop, and low lubricity grooved plungers.
See Stanadyne service bulletins: S.B 60R8, S.B.108RlO, S.B.125R5, S.B. 304R8 S.B. 334R1, S.B. 373R1.
A common issue with the design of the DB series rotary pump is rapid wear of the advance piston bore due to the hardened piston sliding in the aluminum bore quickly eroding the critical tolerance due to lack of lubricity of modern diesel fuel. Most cheaper rebuilds ream out this bore and fit a larger piston, but this is just a temporary fix and soon the hydraulic advance will be out of spec, resulting in a lack of power, high egts and a smokey exhaust.Our solution is to mill out this bore and install a ceramic sleeve. This ceramic sleeve allows us to create a better fit than with the original design, and shows no wear after over 100k miles, extending the lifespan of the pump, and maintaining the same out of box performance many years down the road.
-If purchasing an exchange order with no core supplied, the cost of the service increases $100 along with a $200 core charge that will be refunded after the core has been received and inspected.
-If sending a core upfront, please be sure to strip the pump of all extra parts, if you are confused about which parts to remove please review the instructions page linked below. CDD is not responsible for parts left on core pumps.
Installation Instructions: https://docs.google.com/document/d/1HtY4dqxr3rb8z64wpksy0_WgorBhvYN44x3st4025Kw/edit?usp=sharing
This model pump replaces:
DB2829-4102 - 1801359C92 - 6.9 Liter 1983 Ford F Truck E Van
DB2829-4191 - 1805384C92 - 6.9 Liter 1983 Navistar S Series Truck
DB2829-4237 - 1803140C92 - 6.9 Liter 1983 Ford F Truck E Van (Alt. Comp.)
DB2829-4244 - 1805384C91 - 6.9 Liter 1983 Navistar S Series Truck (Alt.) - Field Service Made from DB2829-4191
DB2829-4307 - 1805723C92 - 6.9 Liter 1983 Marine / Repower
DB2829-4331 - 1805813C91 - 6.9 Liter 1984-85 Marine / Repower
DB2829-4332 - 1805806C91 - 6.9 Liter 1984-85 Navistar S Series Truck (155 HP) Superseded by DB2829-4539
DB2829-4333 - 1805808C91 - 6.9 Liter 1984 Ford F Truck & E Van (Alt. Comp.) Superseded by DB2829-4370
DB2829-4334 - 1805807C91 - 6.9 Liter 1984 Ford F Truck & E Van Superseded by DB2829-4369
DB2829-4368 - 1807551C91 - 6.9 Liter 1984-85 Navistar S Series Truck (165 HP)
DB2829-4369 - 1807560C91 - 6.9 Liter 1984-85 Ford F Truck E Van Superseded by DB2829-4746
DB2829-4370 - 1807568C91 - 6.9 Liter 1984-85 Ford F Truck E Van (Alt. Comp.) Superseded by DB2829-4747
DB2829-4379 - 1807629C91 - 6.9 Liter 1984 Navistar S Series Truck Cargostar (148 HP)
DB2829-4383 - Field Service - 6.9 Liter Marine / Repower (Alt. Comp.) 1983 Made from DB2829-4307
DB2829-4384 - Field Service - 6.9 Liter 1984-85 Navistar S Series Truck (Alt. Comp.) Made from DB2829-4332 or 4368
DB2829-4385 - Field Service - 6.9 Liter 1984-85 Marine / Repower (Alt. Comp.) Made from DB2829-4331
DB2829-4538 - 1805813C92 - 6.9 Liter 1984-87 Marine / Repower
DB2829-4539 - 1805806C92 - 6.9 Liter 1984-87 Navistar S Series Truck (155 HP) Supersedes DB2829-4332
DB2829-4540 - 1807551C92 - 6.9 Liter 1984-87 Navistar S Series Truck (165 HP)
DB2829-4541 - 1807560C92 - 6.9 Liter 1986-87 Ford F Truck & E Van Superseded by DB2829-4746
DB2829-4542 - 1807568C92 - 6.9 Liter 1986-87 Ford F Truck & E Van (Alt. Comp.) Superseded by DB2829-4747
DB2829-4567 - 1809422C91 - 6.9 Liter 1987 Navistar S Series Truck (155 HP) Superseded by DB2829-4539
DB2829-4568 - 1809053C91 - 6.9 Liter 1987 Navistar S Series Truck (165 HP) Superseded by DB2829-4540
DB2829-4609 - Service Only - 6.9 Liter 1984-87 Navistar S Series Truck (Alt.) Made from DB2829-4539 or 4540
DB2829-4623 - 1811209C91 - 6.9 Liter 1986-87 Navistar S Series Truck (130 HP)
DB2831-4629 - 1811303C91 - 7.3L Liter 1988 Navistar S Series Truck (130 HP) Superseded by DB2831-4816
DB2831-4630 - 1809083C91 - 7.3L Liter 1988 Navistar S Series Truck (155 HP) Superseded by DB2831-4815
DB2831-4631 - 1809096C91 - 7.3L Liter 1988 Navistar S Series Truck (170 HP) Superseded by DB2831-4814
DB2831-4632 - 1809121C91 - 7.3L Liter 1988 Ford F Truck E Van Superseded by DB2831-4814
DB2831-4633 - 1809045C91 - 7.3L Liter 1988 Ford F Truck E Van (Alt.) Superseded by DB2831-4813
DB2831-4703 - 1809121C92 - 7.3L Liter 1988-89 Ford F Truck E Van Superseded by DB2831-4732
DB2831-4704 - 1809045C92 - 7.3L Liter 1988-89 Ford F Truck E Van (Alt.) Superseded by DB2831-4733
DB2831-4714 - 1813102C91 - 7.3L Liter 1989 Ford F Truck & E Van - Elect. Auto. Trans. Superseded by DB2-4808
DB2831-4715 - 1813112C91 - 7.3L Liter 1989 Ford F Truck & E Van - Elect. Auto Trans. (Alt. Comp.) Superseded by DB2-4809
DB2831-4717 - 1813251C91 - 7.3L Liter 1989 Ford F Truck & E Van (1.2 cSt) Superseded by DB2831-4810
DB2831-4718 - 1813256C91 - 7.3L Liter 1989 Ford F Truck & E Van (1.2 cSt) (Alt. Comp.) Superseded by DB2831-4811
DB2831-4732 - 1813250C91 - 7.3L Liter 1988-89 Ford F Truck & E Van Superseded by DB2831-4812
DB2831-4733 - 1813255C91 - 7.3L Liter 1988-89 Ford F Truck & E Van (Alt.) Superseded by DB2831-4813
DB2831-4734 - 1809096C92 - 7.3L Liter 1988-89 Navistar S Series Truck (170 HP) Superseded by DB2831-4814
DB2831-4735 - 1809083C92 - 7.3L Liter 1988-89 Navistar S Series Truck (155 HP) Superseded by DB2831-4815
DB2831-4736 - 1811303C92 - 7.3L Liter 1988-89 Navistar S Series Truck (130 HP) Superseded by DB2831-4816
DB2829-4746 - 1813300C91 - 6.9 Liter 1984-87 Ford F Truck & E Van Supersedes DB2829-4541
DB2829-4747 - 1813305C91 - 6.9 Liter 1984-87 Ford F Truck & E Van (Alt.) Supersedes DB2829-4542
DB2831-4808 - 1813360C91 - 7.3L Liter 1988-89 Ford F Truck E Van - Elect. Auto. Trans. (185 HP) (Alt.) Supersedes DB2-4714
DB2831-4809 - 1813365C91 - 7.3L Liter 1988-89 Ford F Truck E Van - Elect. Auto. Trans. (166 HP) (Alt.) Supersedes DB2-4715
DB2831-4810 - 1813251C92 - 7.3L Liter 1988-89 Ford F Truck E Van (1.2 cSt) Supersedes DB2831-4717
DB2831-4811 - 1813265C92 - 7.3L Liter 1990-91 Ford F Truck E Van -Auto. Trans. (185 HP)(1.2cSt) Supersedes DB2831-4718
DB2831-4812 - 1813370C91 - 7.3L Liter 1988-89 Ford F Truck E Van Supersedes DB2831-4732
DB2831-4813 - 1813375C91 - 7.3L Liter 1988-89 Ford F Truck E Van (Alt.) Supersedes DB2831-4733
DB2831-4814 - 1809096C93 - 7.3L Liter 1988-89 Navistar S Series Truck (170 HP) Supersedes DB2831-4734
DB2831-4815 - 1809083C93 - 7.3L Liter 1988-89 Navistar S Series Truck (155 HP) Supersedes DB2831-4835
DB2831-4816 - 1811303C93 - 7.3L Liter 1988-89 Navistar S Series Truck (130 HP) Supersedes DB2831-4836
DB2831-4817 - 1813102C92 - 7.3L Liter 1990-92 Ford F Truck E Van - Elect. Auto. Trans.
DB2831-4818 - 1813112C92 - 7.3L Liter 1990-92 Ford F Truck E Van - Elect. Auto. Trans. (Alt.)
DB2831-4819 - 1813450C91 - 7.3L Liter 1990-92 Ford F Truck E Van (1.2 cSt)
DB2831-4820 - 1813455C91 - 7.3L Liter 1990-92 Ford F Truck E Van (Alt.) (1.2 cSt.)
DB2831-4821 - 1813385C91 - 7.3L Liter 1990-92 Ford F Truck E Van
DB2831-4822 - 1813390C91 - 7.3L Liter 1990-92 Ford F Truck E Van (Alt.)
DB2831-4823 - 1813460C92 - 7.3L Liter 1990-92 Navistar S Series Truck (170 HP)
DB2831-4824 - 1813465C92 - 7.3L Liter 1990-92 Navistar S Series Truck (155 HP)
DB2831-4825 - 1813470C91 - 7.3L Liter 1990-92 Navistar S Series Truck (130 HP)
DB2831-4826 - 1813265C92 - 7.3L Liter 1990-91 Ford F Truck E Van -Elect. Auto. Trans. (185 HP -1.2cSt)
DB2831-4827 - 1813270C92 - 7.3L Liter 1990-92 Ford F Truck E Van -Elect. Auto. Trans. (Alt.) (1.2 cSt)
DB2831-5009 - 1816625C91 - 7.3L Liter NATO/Runway Sweeper (155 HP)
DB2831-5013 - 1816521C91 - 7.3L Liter 1992-1/2 Ford F Truck - Auto Trans. (185 HP)
DB2831-5027 - 1816522C91 - 7.3L Liter 1992-1/2 Ford F Truck - Auto Trans. (170 HP)
DB2831-5028 - 1816523C91 - 7.3L Liter 1992-1/2 Ford F Truck - Man Trans. (185 HP)
DB2831-5029 - 1816524C91 - 7.3L Liter 1992-1/2 Ford F Truck - Man Trans. (166 HP)
DB2831-5030 - 1813460C93 - 7.3L Liter 1992-1/2 Navistar S Series Truck (170 HP)
DB2831-5031 - 1813465C93 - 7.3L Liter 1992-1/2 Navistar S Series Truck (155 HP)
DB2831-5032 - 1816625C92 - 7.3L Liter 1992-1/2 NATO/Runway Sweeper (155 HP
